PNEUMATIC ROTATION DEVICES FOR YOUR COMPRESSORS

Description

Turning devices make it easy to rotate the flywheel of a piston or rotor of any relevant machine to bring it into position for maintenance and repair work.

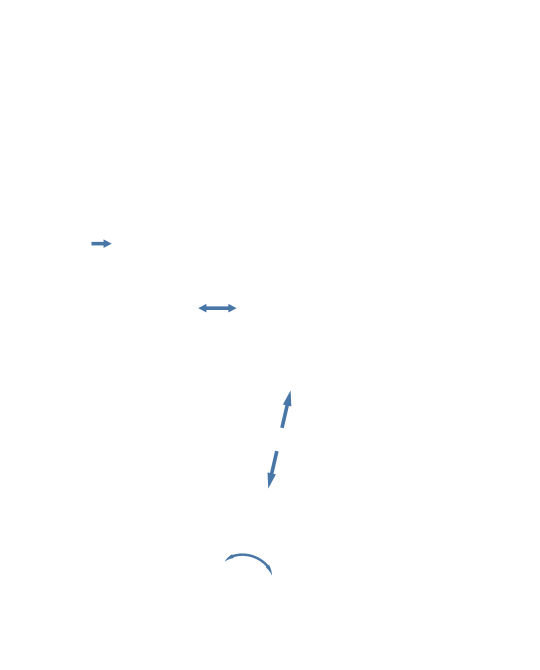

The rotary movement is achieved by a pneumatically operated working cylinder with the respective devices which engages in corresponding holes on the circumference of the flywheel or rotor.
The rotary motion is achieved by a pneumatically actuated working cylinder with the respective devices that engage in corresponding drill holes on the circumference of the flywheel or rotor.

Advantages

  • no manual power required
  • exact positioning and securing of the flywheel position
  • individual constructive adaptation upon request



Data-sheet-pneumatic-rotation-devices

Technical data

Piston diameter                        80 – 320mm


Stroke length                            160 – 320mm


Thrust                                         F1= 3.000 – 43.300 N (bei 6 bar)


Compressed air connection   G½“


The pneumatic rotation device is double-acting!
